SHURE
Brothers, Inc.
PHONO  CARTRIDGES

1/2"   Mount  Audiophile  Cartridges

• Stylus Type: MASAR™ polished natural gemstone.  Micro-Ridge.  Side x front radii: 0.15 x 3.0
  mil. Configuration.
• Cantilever: V15 - Ultra low mass  Beryllium / tubular  0.5 mil wall thickness / 18 mil. diameter.
• Frequency Response: 10 Hz. - 25 kHz.
• Output Voltage: 3.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 30dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.25 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.6 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Hypereliptical Nude Diamond Stylus Configuration..
• Cantilever: V15 - Ultra low mass  Beryllium / tubular  0.5 mil wall thickness / 18 mil. diameter.
• Frequency Response: 10 Hz. - 25 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Channel Balance: Within 2dB.
• Tracking Force Range: 0.75 to 1.25 grams.
• Force Exerted by Dynamic Stabilizer: 0.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.4 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: 0.2 mil. x 1.5 mil. MASAR™  Polished Hypereliptical Natural Gemstone Diamond Stylus Configuration.
• Cantilever: MICROWALL/Be™   Beryllium shank.
• Coil Core: BIFOLD-PARAFLUX™ humbucking and interlocking non-resonant substructure.
• Frequency Response: 20 Hz. - 22 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Channel Balance: Within 2dB.
• Tracking Force Range: 1.5 to 1.75 grams. (Offset by the 0.5 gram force exerted by the dynamic stabilizer brush.)
• Optimum Load: 47, 000 ohms resistance in parallel with 200 to 300 picofarads total capacitance.
• Net Weight: 4.5 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Accessory: Includes aluminum "ML Series" Overhang Gauge shown above.


d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

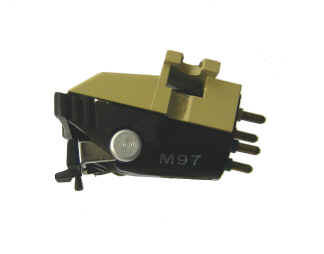

• Stylus Type: Hyperelliptical
  Nude Diamond Stylus Configuration.
• Frequency Response: 10 Hz. - 25 kHz.
• Output Voltage: 3.5 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.25 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 400 to 500 picofarads total capacitance.
• Inductance: 500 millihenries.
• DC Resistance: 1,350 ohms.
• Net Weight: 6.4 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

 d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Hyperelliptical
  Nude Diamond Stylus Configuration.
• Cantilever: Shure Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 22 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 200 to 300 picofarads total capacitance per channel.
• Net Weight: 6.6 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Hyperelliptical 0.2 x 0.15 mil. Nude Diamond Stylus Configuration.
• Cantilever: Shure Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 22 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 200 to 300 picofarads total capacitance per channel.
• Net Weight: 6.4 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Your Price

$ 228.40

EACH

• Stylus Type: 0.2 x 0.7 mil. Nude Biradial Elliptical.
• Cantilever: Shure Type IV - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 22 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.4 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Spherical Diamond Stylus Configuration.
• Cantilever: Shure aluminum alloy / tubular.  1.0 mil wall thickness / 22 mil. diameter.
• Frequency Response: 20 Hz. - 15 kHz.
• Output Voltage: 7.5 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 3.0 to 6.0 grams.
• Optimum Load: 47 kOhms.
• Inductance: 420 mH.
• D. C. Resistance: 280 Ohms.
• Static Compliance: 4 x 10^-6 cm/dyne Vertical & Horizontal..
• Net Weight: 9.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

A true collectors item from 1978!

d

Your Price

$ 242.34

EACH

• Stylus Type: Polished natural gemstone.  Elliptical.  Side x front radii: 0.2 x 0.7 mil.
• Cantilever: Shure Type II - Very low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 20 mil. diameter.
• Frequency Response: 20 Hz. - 22 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.6 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 124.60

EACH

• Stylus Type: Polished natural gemstone.  Elliptical.  Side x front radii: 0.2 x 0.7 mil.
• Cantilever: Shure Type II - Very low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 20 mil. diameter.
• Frequency Response: 20 Hz. - 22 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.6 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.6 mil.
• Cantilever: Shure Type I - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 6.2 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.0 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Replacement Stylus: N70B.
• Replacement 78 RPM Stylus: N70-3.

d

Your Price

$ 65.56

EACH

NOTE:
Inventory on this item is very limited!

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type I - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 18 kHz.
• Output Voltage: 5.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

d

Your Price

$ 49.16

EACH

NOTE:
Inventory on this item is very limited!

 1/2"   Mount  DJ  Cartridges

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type S.  Heat-treated aluminum alloy / tubular.  1.6 mil wall thickness / 34.5 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 9.5 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 450 to picofarads total capacitance.
• Net Weight: 6.7 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 102.35

EACH

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type S.  Heat-treated aluminum alloy / tubular.  1.6 mil wall thickness / 34.5 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 6.2 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 450 to picofarads total capacitance.
• Net Weight: 6.7 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 92.68

EACH

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type I.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 5.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 3.0 to 5.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 72.18

EACH

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type I - Low Mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 6.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 0.7 mil.
• Cantilever: Shure Type I - Low Mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 5.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 450 to picofarads total capacitance.
• Net Weight: 6.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 68.93

EACH

78  RPM  1/2"  Mount  System

• Stylus Type: Polished natural gemstone.  Spherical.  Radius 2.5 mil.
• Cantilever: Shure Type I - Low Mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Output Response: Monaural.
• Tracking Force Range: 1.5 to 3.0 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 6.2 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.

Your Price

$ 69.35

EACH

Convertible   Mount  System

• Stylus Type: 0.15 x 0.2 mil. Hyperelliptical. Polished natural gemstone.
• Cantilever: Shure Type I - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 1.25 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 200 to 300 picofarads total capacitance.
• Net Weight: 6.0 grams.  8.0 grams with adaptor.
• Mounting: Universal Mount that is convertible to Standard 1/2" (12.7mm) Mounting Centers or P-Mount.

d

Your Price

$ 248.66

EACH

NOTE:
Inventory on this item is very limited!

• Stylus Type: Polished natural gemstone.  Biradial Elliptical.  Side x front radii: 0.4 x 0.7 mil.
• Cantilever: Shure Type I - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.5 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 200 to 300 picofarads total capacitance.
• Net Weight: 6.0 grams.  8.0 grams with adaptor.
• Mounting: Universal Mount that is convertible to Standard 1/2" (12.7mm) Mounting Centers or P-Mount.

d

Your Price

$ 106.54

EACH

NOTE:
Inventory on this item is very limited!

• Stylus Type: Polished natural gemstone.  Biradial.  Side x front radii: 0.4 x 0.7 mil.
• Cantilever: Shure Type I - Low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 30 mil. diameter.
• Frequency Response: 20 Hz. - 18 kHz.
• Output Voltage: 5.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 20dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 picofarads total capacitance.
• Net Weight: 5.9 grams.  7.9 grams with adaptor.
• Mounting: Universal Mount that is convertible to Standard 1/2" (12.7mm) Mounting Centers or P-Mount.

Your Price

$ 34.45

EACH

"P"   Mount  System

• Stylus Type: Polished natural gemstone.  Elliptical.  Side x front radii: 0.2 x 0.7 mil.
• Cantilever: Shure Type II - Very low mass.  Heat-treated aluminum alloy / tubular.  1.0 mil wall thickness / 20 mil. diameter.
• Frequency Response: 20 Hz. - 22 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.  Output from each channel within 2 dB.
• Channel Separation: Minimum 25dB at 1 kHz.
• Tracking Force Range: 0.75 to 1.5 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 250 to picofarads total capacitance.
• Net Weight: 5.9 grams.
• Mounting: P-Mount.

d

Sorry...  This product is UNAVAILABLE at this time.

If you would like to be placed on a waiting list, please contact us by PHONE, FAX or EMAIL.

Thank you.

PHONO CARTRIDGE STYLUS REPLACEMENTS

RELATED  PRODUCTS

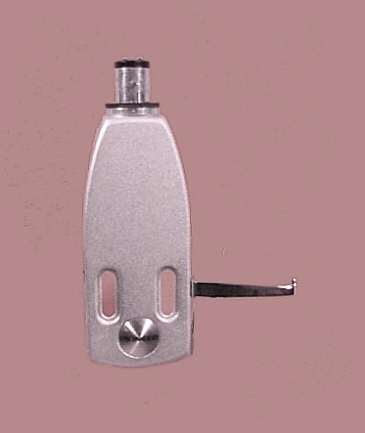

• Bayonet Type Headshell.

• Fits most PIONEER Turntables.

• Fits many older Turntables such as Akai, Marantz, Technics and Others.

• Manufacturer: PIONEER.

SFG-2
Stylus Tracking Force Gauge

The Shure SFG-2 Stylus Tracking Force Gauge is the industry standard. This simple-to-use measuring device was developed to give listeners a way to insure against the problems caused by improper tracking force settings, which include mistracking, excessive record and tip wear, and poor sound reproduction.

This gauge is a highly accurate beam balance instrument designed to measure the actual downward force exerted by a stylus on a record over the range of 0.5 to 3.0 grams. Each gauge is individually calibrated, and displays readings in 0.05 gram increments in order to provide a precise measurement of stylus tracking force.

• The Safest Way to Remove Waxy Deposits,  Dust or other Deposit Build-Up from Your Phono Stylus.

• D5SC060 Stylus Cleaning Formula Dissolves Foreign Material Known to Hinder Proper Stylus Tracking.

• Brush Applicator Quickly Whisks Away and Dissolves Deposits Without Harming the Delicate Diamond Stylus.

• A Regular Regimen Between Album Side Plays Extends Both Stylus and Record Life.

• This Fluid is Particularly Important for Cartridges and Tone Arms which use Low Tracking Force.

• Manufacturer: D5 Squared Products.

SYSTEM CONTENTS:

• D5SC060 Stylus Cleaning Formula Includes Applicator in Cap.

• The D5SC060 Stylus Cleaning Formula in a 2.02 Ounce (60 ml.) Smoked Glass Bottle.

WARNING!  WARNING!  WARNING!

• Avoid Prolonged Breathing of Vapors or Immediate Contact with Skin.
  Use Only with Adequate Ventilation.

• DO NOT TAKE INTERNALLY.

• In case of eye contact, flush with water immediately.  If swallowed, induce vomiting only when conscious.  Call a physician.

DANGER!

This FLAMMABLE formula should NOT be used near heat, sparks or open flame.

Your Price
$ 17.92

EACH

BENEFITS:

• Four "color coded" headshell wires.

• Gold plated terminals for best conduction.

• Silk wrapped LC-OFC copper Litz conductors.

• Manufacturer: Audioquest.

Your Price
$ 24.93

Set of Four

BENEFITS:

• Greater clarity and contrast from damping vinyl records on glass or metal platters.

• Replaces factory record mat.

• Manufacturer: Audioquest.

Your Price
$ 94.22

EACH

BENEFITS:

• Contains more than 1,000,000 conductive carbon fibers for effective record cleaning.

• Designed for dry use.

• Works well on LCD screens and keyboards too!

• Manufacturer: Audioquest.

Your Price
$ 19.91

EACH

Return to CARTRIDGE HOME PAGE
