ORTOFON
PHONO  CARTRIDGES

1/2"   Mount  Audiophile  Cartridges

TECHNICAL DATA:

• Stylus Type: 0.2 x 0.7 mil. Polished Nude Elliptical Diamond.
• Frequency Response: 20 Hz. - 24 kHz. +2/-1 dB.
• Frequency Range: 20 Hz. - 27 kHz. at - 3dB.
• Channel Balance: 1.5dB at 1 kHz.
• Channel Separation: 25dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 25 µm/mN.
• Tracking Ability: 80 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.25 to 1.75 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 1 kOhm Internal Resistance.
• Internal Inductance: 580 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-400 pF.
• Net Weight: 5.0 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Replacement Stylus: Stylus 20.

Your Price

$142.86

EACH

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Polished Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. +3/-1 dB.
• Frequency Range: 20 Hz. - 22 kHz. at - 3dB.
• Channel Balance: 1.5dB at 1 kHz.
• Channel Separation: 25dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 25 µm/mN.
• Tracking Ability: 70 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.25 to 2.25 grams.
• Recommended Tracking Force: 1.75 grams.
• Tracking Angle: 20°.
• Internal Impedance: 1 kOhm Internal Resistance.
• Internal Inductance: 580 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-400 pF.
• Net Weight: 5.0 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Replacement Stylus: Stylus 10.

Your Price

$104.25

EACH

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Polished Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz.
• Channel Balance: 1.5dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 20 µm/mN.
• Tracking Ability: 65 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.5 to 2.0 grams.
• Recommended Tracking Force: 1.75 grams.
• Tracking Angle: 20°.
• Internal Impedance: 1 kOhm Internal Resistance.
• Internal Inductance: 750 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 5.0 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Replacement Stylus: Stylus 5 E.

Your Price

$ 71.55

EACH

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Polished Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz.
• Channel Balance: 1.5dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 20 µm/mN.
• Tracking Ability: 55 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.5 to 2.0 grams.
• Recommended Tracking Force: 1.75 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: Standard 1/2" (12.7mm) Mounting Centers.
• Replacement Stylus: Stylus 3 E.

Your Price

$ 66.18

EACH

Integral   Mount  System

TECHNICAL DATA:

• Stylus Type: 0.2 x 0.7 mil. Polished Nude Elliptical Diamond.
• Frequency Response: 20 Hz. - 24 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 28 kHz. at - 3dB.
• Channel Balance: 2dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 25 µm/mN.
• Tracking Ability: 25 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.25 to 1.75 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: Integral Bayonet Mount.
• Replacement Stylus: Stylus 20.

Your Price

$192.65

EACH

"P" Mount  (T4P)  High  Output  Moving  Coil  System

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz. at - 3dB.
• Channel Balance: 2dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 2.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 13 µm/mN.
• Tracking Ability: 60 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.25 to 1.50 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 80 Ohm DC Resistance.
• Recommended Load Resistance: 47 kOhm / 500 pF.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: P-Mount (T4P).
• Replacement Stylus: None.

NOTES:

The X1-MCP is a high output moving coil (MC) cartridge with an elliptical stylus profile for use with P-Mount (T4P) type tonearms. Perfect for inbuilt phono preamps or standard moving magnet (MM) preamps, the X1-MCP profiled a taste of the linearity and precision of moving coils without the need for additional high gain preamps or transformers.

Your Price

$173.25

EACH

"CONVERTIBLE" Mount  (T4P)  System

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Elliptical Diamond.
• Frequency Response: 20 Hz. - 27 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz. at - 3dB.
• Channel Balance: 1.0dB at 1 kHz.
• Channel Separation: 25dB at 1 kHz.
• Channel Separation: 18dB at 15 kHz.
• Output: 3.5 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 40 µm/mN.
• Tracking Ability: 35 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.00 to 1.50 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: Convertible Mount: P-Mount (T4P) ans 1/2" Mount with supplied Adaptor.
• Replacement Stylus: Stylus 30.

Your Price

$315.10

EACH

"P" Mount  (T4P)  System

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Elliptical Diamond.
• Frequency Response: 20 Hz. - 27 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz. at - 3dB.
• Channel Balance: 1.0dB at 1 kHz.
• Channel Separation: 25dB at 1 kHz.
• Channel Separation: 18dB at 15 kHz.
• Output: 3.5 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 40 µm/mN.
• Tracking Ability: 35 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.00 to 1.50 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: P-Mount (T4P).
• Replacement Stylus: Stylus 30.

Your Price

$308.77

EACH

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz. at - 3dB.
• Channel Balance: 2dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 25 µm/mN.
• Tracking Ability: 25 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.25 to 1.75 grams.
• Recommended Tracking Force: 1.25 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 6.0 grams.
• Mounting: P-Mount (T4P).
• Replacement Stylus: Stylus 10.

Your Price

$ 84.11

EACH

TECHNICAL DATA:

• Stylus Type: 0.3 x 0.7 mil. Elliptical Diamond.
• Frequency Response: 20 Hz. - 20 kHz. ± 2 dB.
• Frequency Range: 20 Hz. - 25 kHz. at - 3dB.
• Channel Balance: 2dB at 1 kHz.
• Channel Separation: 22dB at 1 kHz.
• Channel Separation: 15dB at 15 kHz.
• Output: 4.0 mV at 1000 Hz, 5cm/sec.
• Compliance, Dynamic, Lateral: 20 µm/mN.
• Tracking Ability: 65 µm at 315Hz at recommended tracking force.
• Tracking Force Range: 1.5 to 2.0 grams.
• Recommended Tracking Force: 1.75 grams.
• Tracking Angle: 20°.
• Internal Impedance: 750 Ohm Internal Resistance.
• Internal Inductance: 450 mH.
• Recommended Load Resistance: 47 kOhm.
• Recommended Load Capitance: 200-600 pF.
• Net Weight: 5.0 grams.
• Mounting: P-Mount (T4P).
• Replacement Stylus: Stylus 5E.

d

Your Price

$ 54.47

EACH

PHONO CARTRIDGE STYLUS REPLACEMENTS

RELATED  PRODUCTS

• Bayonet Type Headshell.

• Fits most PIONEER Turntables.

• Fits many older Turntables such as Akai, Marantz, Technics and Others.

• Manufacturer: PIONEER.

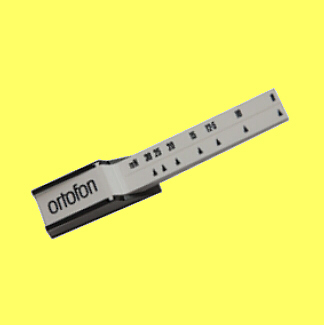

AS-1
Stylus Tracking Force Gauge

FEATURES:

• Very simple to use.

• This gauge is graduated in the European metric mN's (Milli-Newtons) which equals the 10 times the force in grams. (i.e. 10 mN = 1 Gram.)

• Small enough to store on or near your turntable.

PLEASE NOTE:  This scale is NOT a terribly sophisticated device.  If you need greater accuracy, you might consider some of the electronic scales that are available.  Understand that they cost upwards of $100.

SFG-2
Stylus Tracking Force Gauge

The Shure SFG-2 Stylus Tracking Force Gauge is the industry standard. This simple-to-use measuring device was developed to give listeners a way to insure against the problems caused by improper tracking force settings, which include mistracking, excessive record and tip wear, and poor sound reproduction.

This gauge is a highly accurate beam balance instrument designed to measure the actual downward force exerted by a stylus on a record over the range of 0.5 to 3.0 grams. Each gauge is individually calibrated, and displays readings in 0.05 gram increments in order to provide a precise measurement of stylus tracking force.

• The Safest Way to Remove Waxy Deposits,  Dust or other Deposit Build-Up from Your Phono Stylus.

• D5SC060 Stylus Cleaning Formula Dissolves Foreign Material Known to Hinder Proper Stylus Tracking.

• Brush Applicator Quickly Whisks Away and Dissolves Deposits Without Harming the Delicate Diamond Stylus.

• A Regular Regimen Between Album Side Plays Extends Both Stylus and Record Life.

• This Fluid is Particularly Important for Cartridges and Tone Arms which use Low Tracking Force.

• Manufacturer: D5 Squared Products.

SYSTEM CONTENTS:

• D5SC060 Stylus Cleaning Formula Includes Applicator in Cap.

• The D5SC060 Stylus Cleaning Formula in a 2.02 Ounce (60 ml.) Smoked Glass Bottle.

WARNING!  WARNING!  WARNING!

• Avoid Prolonged Breathing of Vapors or Immediate Contact with Skin.
  Use Only with Adequate Ventilation.

• DO NOT TAKE INTERNALLY.

• In case of eye contact, flush with water immediately.  If swallowed, induce vomiting only when conscious.  Call a physician.

DANGER!

This FLAMMABLE formula should NOT be used near heat, sparks or open flame.

Your Price
$ 17.92

EACH

BENEFITS:

• Four "color coded" headshell wires.

• Gold plated terminals for best conduction.

• Silk wrapped LC-OFC copper Litz conductors.

• Manufacturer: Audioquest.

Your Price
$ 24.93

Set of Four

BENEFITS:

• Greater clarity and contrast from damping vinyl records on glass or metal platters.

• Replaces factory record mat.

• Manufacturer: Audioquest.

Your Price
$ 94.22

EACH

BENEFITS:

• Contains more than 1,000,000 conductive carbon fibers for effective record cleaning.

• Designed for dry use.

• Works well on LCD screens and keyboards too!

• Manufacturer: Audioquest.

Your Price
$ 19.91

EACH
