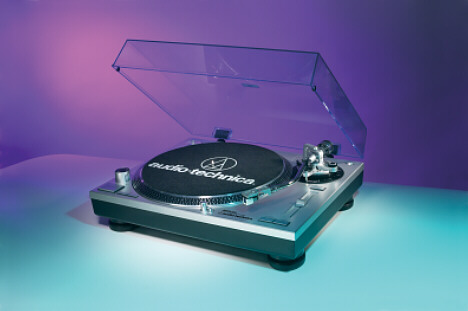

AT-PL120

Direct Drive Professional Stereo Turntable System

PRODUCT  DESCRIPTION:

This professional stereo turntable features a high-torque direct-drive motor for quick start-ups and a selectable internal stereo phono pre-amplifier that allows the turntable to plug directly to computers and other components with no dedicated turntable input.  Other features include: forward and reverse play capability; cast aluminum platter with slip mat and a start/stop button with remote start/stop input; three speeds 33/45/78; selectable high-accuracy quartz-controlled pitch lock and pitch change slider control with +/-10% or +/-20% adjustment ranges; and removable hinged dust cover.  A replaceable Audio-Technica ATP-2 cartridge is included.

PRODUCT  FEATURES:

• Direct drive high-torque motor

• Selectable 33/45/78 RPM speeds

• Selectable internal stereo phono pre-amplifier

• S-shaped tone arm assembly with:
  - Adjustable counterweight
  - Anti-skate adjustment
  - Tone arm height adjustment and lock
  - Tone arm lift with hydraulic action and lift lever
  - Tone arm rest with locking mechanism

• Selectable high-accuracy quartz-controlled pitch lock

• Selectable +/-10% or +/-20% pitch adjustment ranges

• Stroboscopic platter speed indicator

• Forward and reverse play

• Cast aluminum record platter with slip mat

• Start/stop button with remote start/stop input

• Pop-up stylus target light

• 45-RPM adapter with storage receptacle

• Receptacle for extra headshell

• Adjustable feet for leveling

• Removable hinged dust cover

PRODUCT  SPECIFICATIONS:

• Type: 3-speed, fully manual operation.

• Motor: DC motor.

• Drive Method: Direct drive.

• Speeds: 33-1/3 RPM, 45 RPM, 78 RPM.

• Pitch Variation: +/-10% or +/-20%.

• Turntable Platter: Die-cast aluminum.

• Starting Torque: >1.6 kgm-cm.

• Braking System: Electronic brake.

• Wow and Flutter: <0.2% WRMS (33 RPM).

• Signal-to-Noise Ratio: >50 dB.

• Output Level:
  - Pre-amp "Off": 2.5 mV nominal at 1 kHz, 5 cm/sec
  - Pre-amp "On": 200 mV nominal at 1 kHz, 5 cm/sec

• Phono Pre-Amp Gain: 38 dB nominal, RIAA equalized.

• Pitch Output:
  - Output signal to drive remote pitch indicator
  2.5V square wave signal
  - 675 Hz +/- 1 Hz for 33 and 45 RPM quartz locked speeds
  - Varies from 540 Hz - 810 Hz when +/- 20% pitch is selected
  - Varies from 607 Hz - 742 Hz when +/- 10% pitch is selected
  - 1170 +/- 1 Hz for 78 RPM

• Remote Start/Stop: 2 conductor 1/4" connector (T/S) Normally open contact closure.

• Power Supply Requirements: 115/230V AC, 50/60 Hz.

• Power Consumption: 13 Watts.

• Dimensions: 17.75" (450 mm) W x 13.88" (352 mm) D x 6.0" (157 mm) H .

• Net Weight: 23.4 lbs. (10.6 kg).

INCLUDED  ACCESSORIES:

• Headshell.

• AC line cord.

• 45 RPM adapter.

OPTIONAL  ACCESSORIES:

• Phono Cartridge

• Upgraded Platter Mat

• Vinyl Record Care Kit
