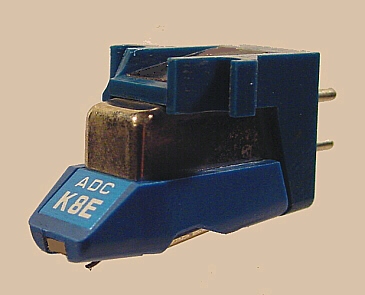

ADC


 AUDIOPHILE  PHONO  CARTRIDGE

K8E
K-8E  K-8-E  K8-E  k8e  k-8e  k-8-e  k8-e

MOVING MAGNET PHONO CARTRIDGE

SPECIFICATIONS:

  • Output voltage: 5.8 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.

  • Channel balance: 2.0 dB at 1 kHz.

  • Channel separation: 22 dB at 1 kHz.

  • Frequency response: 20 Hz. - 20 kHz. ± 2 dB.

  • Tracking ability: 80 µm at 315Hz at recommended tracking force.

  • Stylus type: Elliptical.

  • Stylus tip radius: .4 mil. x 0.7 mil.

  • Tracking force range: 1.5 g. - 3.0 g.

  • Recommended tracking force: 2.25 g.

  • Tracking angle: 20°.

  • Optimum load: 47, 000 ohms resistance in parallel with 275 to picofarads total capacitance.

  • Net Cartridge weight: 5.75 g.

  • Mounting: Standard 1/2" (12.7mm) Mounting Centers.

  • Replacement stylus: RK8E.

Go to the ADC REPLACEMENT STYLUS HOME PAGE Stock: Limited Price: $132.45 Each
Go to the ADC HOME PAGE Go to the DJ HOME PAGE
Go to the TURNTABLE ACCESSORY PAGE



PHONO  CARTRIDGE  MOUNT  TYPES
1/2" Mount P-Mount Convertible or
Universal
Fits both Half-inch and P-mount
