PANASONIC

PHONO CARTRIDGES

TECHNICS PHONO CARTRIDGES by Panasonic
4 Channel "Strain Guage" Phono Cartridge
EPC 451C "Strain Gauge" Cartridge Stylus Type: Special Diamond stylus for CD4 Vinyl Recordings. Stylus Shape: SHIBATA Geometry. Cantilever: Aluminum Alloy. Frequency Response: 0.1 Hz. - 50 kHz. Dynamic Compliance: 8 x 10^-6 Cm/Dyne. Output Voltage: 3.0 mV at 1 kHz, 5 cm/sec. Channel Separation: >20 dB. at 1 kHz. / 21 dB. at 10 kHz. Vertical Tracking Force Range (Grams): 2.0 grams - 3.0 grams. Cartridge Type: Semiconductor or "Strain Gauge". Load Impedance: 1,000 Ohms Pure Resistance. Mounting Hardware: Included. Cartridge Weight: 3.2 Grams. Mounting: Standard 1/2" (12.7mm) Mounting Centers. Replacement Stylus: EPS-451QD A SPECIAL NOTE This is a rare semiconductor ("strain-gauge") cartridge, it is neither Moving Magnet (MM) nor Moving Coil (MC) nor ceramic / piezoelectric. It used the sophisticated Shibata stylus. Replacement styli (needles) are rare, but available from time to time. Note: If you desire to use this cartridge for dedicated CD4, you need a special Panasonic/Technics amp/receiver/preamp (one with "semiconductor" pickup input), however, it will operate with any moving magnet input for stereophonic high fidelity vinyl recordings. It will give you very pleasing high quality sound reproduction.
	Your Price $ 585.87 EACH
2 Channel Ceramic Phono Cartridges

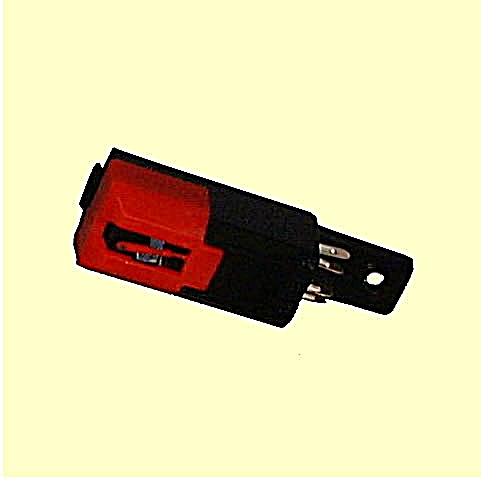

EPC 13STHD Ceramic Stereo Cartridge Stylus Type: Special 0.7 mil. Spherical Diamond stylus. Stylus Shape: Spherical Geometry. Cantilever: Aluminum. Output Voltage: 0.5 V at 1 kHz, 5 cm/sec. Channel Separation: >20 dB. at 1 kHz. / 21 dB. at 10 kHz. Vertical Tracking Force Range (Grams): 3.0 grams - 5.0 grams. Cartridge Type: Ceramic. Load Impedance: 1,000 Ohms Pure Resistance. Terminal Type: Flat Terminals. Mounting Type: Single Screw. Replacement Stylus: EPS-38 Also use in: Bright Ideas (UK), Derens, Electro-Brand, Emerson, Fisher, Hitachi, Lenoxx, Logic Midi, Magnavox, Panasonic, Philco, Quasar, Realistic, Sanyo, Sharp, Silvertone (Sears), Soundesign, Symphonic, Teac, York and other Turntables.
	Your Price $ 36.48 EACH

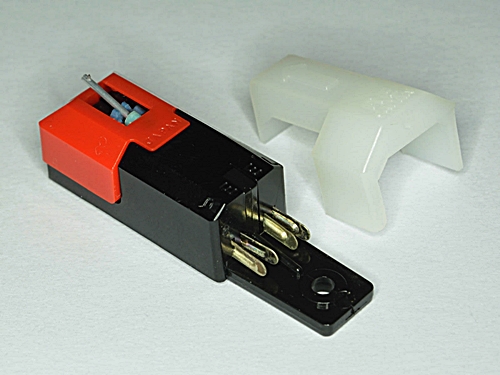

EPC 13STLD Ceramic Stereo Cartridge Stylus Type: Special 0.7 mil. Spherical Diamond stylus. Stylus Shape: Spherical Geometry. Cantilever: Aluminum Alloy. Output Voltage: 0.5 V at 1 kHz, 5 cm/sec. Channel Separation: >20 dB. at 1 kHz. / 21 dB. at 10 kHz. Vertical Tracking Force Range (Grams): 3.0 grams - 5.0 grams. Cartridge Type: Ceramic. Load Impedance: 1,000 Ohms Pure Resistance. Mounting Type: Single Screw. Replacement Stylus: EPS-41 Also use in: Bright Ideas (UK), Derens, Electro-Brand, Emerson, Fisher, Hitachi, Lenoxx, Logic Midi, Magnavox, Panasonic, Philco, Quasar, Realistic, Sanyo, Sharp, Silvertone (Sears), Soundesign, Symphonic, Teac, York and other Turntables.
	Your Price $ 39.25 EACH

PHONO CARTRIDGE MOUNT TYPES
1/2" Mount	P-Mount	Convertible or Universal
		Fits both Half-inch and P-mount

RELATED PRODUCTS
PXA-792S Headshell (Silver) Bayonet Type Headshell. Fits most PIONEER Turntables. Fits many older Turntables such as Akai, Marantz, Technics and Others. Manufacturer: PIONEER.	Other colors and types are available!	Your Price $ 33.92 EACH
SPG DIGITAL STYLUS FORCE GAUGE The Philmore-Ditek SPG Digital Stylus Tracking Force Gauge is the precision of digital technology with a very affordable price. This easy-to-use measuring device was developed to give listeners a way to insure against the problems caused by improper tracking force settings, which include mis-tracking, excessive record and tip wear, and poor sound reproduction. This gauge is a highly accurate digital balance instrument designed to measure the actual downward force exerted by a stylus on a record over the range of 0.01 to 5.0 grams. Each gauge is calibrated with an included 5.0 gram weight, and displays readings in 0.01 gram increments in order to provide a very precise measurement of stylus tracking force.		Your Price $ 39.87 EACH
SFG-2 Stylus Tracking Force Gauge The Shure SFG-2 Stylus Tracking Force Gauge is the industry standard. This simple-to-use measuring device was developed to give listeners a way to insure against the problems caused by improper tracking force settings, which include mis-tracking, excessive record and tip wear, and poor sound reproduction. This gauge is a highly accurate beam balance instrument designed to measure the actual downward force exerted by a stylus on a record over the range of 0.5 to 3.0 grams. Each gauge is individually calibrated, and displays readings in 0.05 gram increments in order to provide a precise measurement of stylus tracking force.		Your Price $ 32.71 EACH
D5SC060 Stylus Cleaning Formula The Safest Way to Remove Waxy Deposits, Dust or other Deposit Build-Up from Your Phono Stylus. D5SC060 Stylus Cleaning Formula Dissolves Foreign Material Known to Hinder Proper Stylus Tracking. Brush Applicator Quickly Whisks Away and Dissolves Deposits Without Harming the Delicate Diamond Stylus. A Regular Regimen Between Album Side Plays Extends Both Stylus and Record Life. This Fluid is Particularly Important for Cartridges and Tone Arms which use Low Tracking Force. Manufacturer: D5 Squared Products. SYSTEM CONTENTS: D5SC060 Stylus Cleaning Formula Includes Applicator in Cap. The D5SC060 Stylus Cleaning Formula in a 2.02 Ounce (60 ml.) Smoked Glass Bottle.	WARNING! WARNING! WARNING! Avoid Prolonged Breathing of Vapors or Immediate Contact with Skin. Use Only with Adequate Ventilation. DO NOT TAKE INTERNALLY. In case of eye contact, flush with water immediately. If swallowed, induce vomiting only when conscious. Call a physician. DANGER! This FLAMMABLE formula should NOT be used near heat, sparks or open flame.	Your Price $ 17.92 EACH
HL-S Headshell Leads BENEFITS: Four "color coded" headshell wires. Gold plated terminals for best conduction. Silk wrapped LC-OFC copper Litz conductors. Manufacturer: Audioquest.	Not Shown to Actual Size.	Your Price $ 24.93 Set of Four
SorboGel Record Mat Damping Replacement Mat BENEFITS: Greater clarity and contrast from damping vinyl records on glass or metal platters. Replaces factory record mat. Manufacturer: Audioquest.	Not Shown to Actual Size.	Your Price $ 94.22 EACH
RECORD BRUSH Carbon Fiber Brush BENEFITS: Contains more than 1,000,000 conductive carbon fibers for effective record cleaning. Designed for dry use. Works well on LCD screens and keyboards too! Manufacturer: Audioquest.	Not Shown to Actual Size.	Your Price $ 24.91 EACH
STATIC ELIMINATOR Double Barrel Static Elimination Gun BENEFITS: Simple to use. Double barrel for wider dispersion. No battery or electrical connections necessary. Keeps your records cleaner and quieter. Use wherever static build-up is a problem. Manufacturer: Empire Audio Groome.	Not Shown to Actual Size.	Your Price $ 89.92 EACH
