A15.3
Integrated
Amplifier
A smart alternative to surround sound
receivers and all-in-one systems

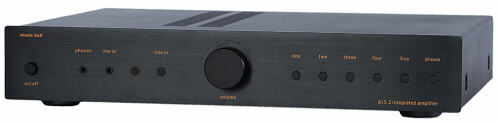

The Music Hall A15.3
is the perfect choice for someone looking to assemble their first high-end
audio system. Connecting a turntable couldn’t be easier with the built-in
moving magnet phono preamp. The amp delivers an impressive 50 watts/channel,
which is plenty of power to drive the majority of loudspeakers on the
market.
SPECIFICATION / FEATURE LIST:
- high-current 50 watt/ch amplifier
- ultra low noise pre-amplifier section
- brushed aluminum face plate
- gold plated heavy gauge speaker binding posts
- 5 x analog stereo gold plated inputs
- 1 x pre-amp out
- moving-magnet phono input
- 1 x 3.5mm headphone output
- 1 x 3.5mm front panel line input
- special padded vibration damping feet
- powerful high-current toroidal power transformer
- solid chassis
- voltage switchable
- removable power cord
- system remote control
- black fascia + case
- w17 x d14.3 x h3.1 in
Stephen Mejias, of Stereophile enthuses:
…The
Music Halls brought that same music forward
and enveloped me in brilliant sound.
…Panning,
swirling, phasing—seemed to reach into the listening room, wrap me up in
colorful threads, and transport me into space.
Music played
through the Music Hall a15.3’s phono stage
sounded superb—quiet, dynamic, and emotionally compelling.
19 |
|
YOUR PRICE
$548.88
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
A30.3
Integrated
Amplifier
The Music Hall A30.3
is an analog lover’s dream that sluices right through the digital world.
A robust 85 watt/channel amplifier mated to an
exceptionally quiet moving-magnet phono stage and scientifically proven
digital to analog converter belie the understated traditional chassis. The
Music Hall A30.3 is delightful to
use and a pleasure to share with friends via the surprisingly good sounding
Bluetooth connection. The Music Hall A30.3
pioneers new ground while remaining firmly planted in the analog universe.
SPECIFICATION / FEATURE LIST:
- 85 watt/channel stereo amp
- MM phono pre-amp
- 3 digital inputs (USB, toslink, coax)
- 24bit/192kHz Cirrus Logic CS4398 DAC
- Bluetooth connectivity
- Stout chassis with rigid aluminum faceplate
- 5 analog inputs
- Remote control
- Pre-amp out
- Easy to set-up and use
- System remote also controls the
cdac15.3
- w16.9 x d14.3 x h4.0 in.
technical specifications
- Input sensitivity: RCA: 410mV, Phono (MM): 2mV
- Power output: 85W/Channel @ 8 ohms or 160W/Channel
@ 4 ohms
- Pre-out: 800mV
- SNR: >100dB
- THD+N: <0.02% (20Hz-20KHz)
- Frequency response: RCA: 20Hz-20KHz (+/- 0.5dB)
PHONO: RIAA compliant
- Analog inputs: 5 x line level, 1 x phono
digital section
- D/A CONVERTER: Cirrus Logic CS4398
- Sampling rate: 24bit/192K (COAX, OPTICAL, USB)
- USB: CM6631A
- USB frequency: >PCM 24bit/192k
- BT: V2.1+APTX
18 |
Photographs NOT shown to scale.
|
YOUR PRICE
$988.88
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
CD
PLAYER |
c-dac15.3
CD Player
Versatility, performance, and value are the hallmarks of
the Music Hall c-dac15.3.
By combining a fantastic 3-input DAC with a great
sounding CD player, we’ve designed a one-box solution that will simplify and
dramatically improve your digital music experience. Connect it to a
computer, Sonos, Apple TV, Airport Express, any digital
streaming device, or simply play a CD and you’ll be amazed by the
improvement in sound. The
Music Hall c-dac15.3 is
easy to operate and partners beautifully with our matching
Music
Hall 15.3 integrated amp.
SPECIFICATION / FEATURE LIST:
- 24bit/192kHz Burr-Brown PCM 1796 DAC
- 3 input (optical, coax, usb-b) 24bit/192kHz
Wolfson WM8805 DAC
- Brushed aluminum faceplate
- Mid-ship mounted vibration damped CD transport
- High efficiency toroidal power transformer
- Gold plated stereo output
- Coax digital output
- Plays CD, CD-R/RW
- Rmovable power cord
- Special padded vibration damping feet
- Voltage switchable
- System remote control
- Easy to view display
- Black finish
- w17 x d14.3 x h3.1 in
Vinyl Engine Review of the MMF-2.2
"…
I know of no other CD player in the Music Hall’s
price range that comes with as many high-quality digital inputs."
"Music
Hall’s newest and most affordable electronics are models of extreme
utility. The c-dac15.3 combines a single-disc CD player and three-input
(USB, TosLink, coaxial) digital-to-analog converter in a single box…"

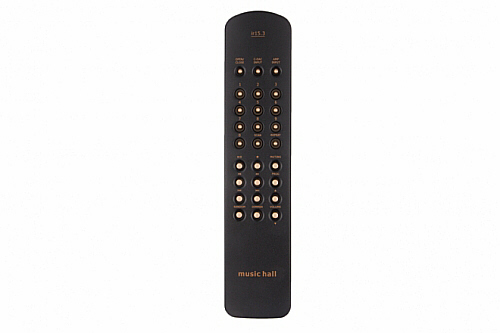

"It comes
with a robust AC cord and a slim remote control whose metallic charcoal
finish, gold-hued buttons, and textured backside make it unusually
attractive and satisfying to use."
19 |
|
YOUR PRICE
$548.88
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
DAC's |

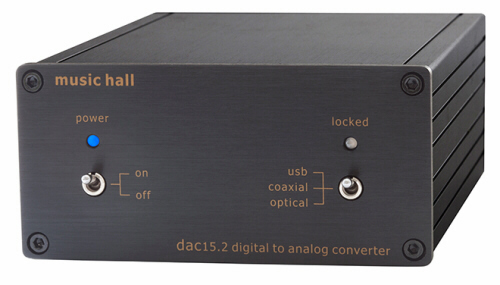

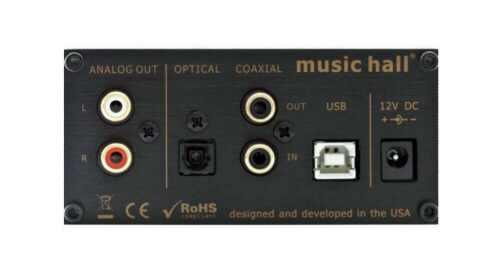

dac15.2
Solid State DAC
The Music Hall dac15.2 is
a three input solid-state digital to analog converter. It’s the ideal
solution for converting digital signals to analog output.
The beautifully finished, extruded aluminum box wards off
the effects of stray magnetic fields and provides a safe quiet environment
for the sensitive electronics it houses, thus providing you with the best
sound possible from your digital sources. Connect it to a computer,
Sonos, Apple TV, Airport Express, any digital streaming
device, or any digital streaming device and you’ll be amazed by the
improvement in sound.
SPECIFICATION / FEATURE LIST:
- 3 digital inputs (usb, optical, coaxial)
- 1 digital output (coaxial) – converts usb and
optical digital input signals to coaxial digital output
- 1 pair (rca) analog outputs
- Superior Texas Instruments (Burr-Brown) PCM 1796
24bit/192kHz processor
- 24bit/96kHz digital processing via usb input
- 24bit/192kHz digital processing via optical and
coaxial inputs
- Easily connects to PC and Apple computers
- Output level: 2.1mV
- 0.0012% total harmonic distortion
- Signal to noise ratio: >110dB
- Frequency range: DC – 20kHz +/- 0.5dB
- Ultra-quiet external power supply
- Rigid noise rejecting extruded aluminum chassis
- w4.2 x d6 x h2.1 in.
2 |
|
YOUR PRICE
$298.88
Sorry...
This item has been
by MUSIC HALL.
Thank you for your support over the years!
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |

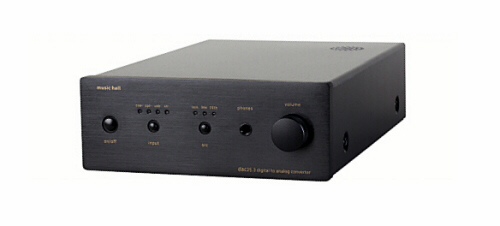

dac25.3
Tube / Solid
State DAC
We designed the
Music Hall dac25.3 to directly address this problem and to
significantly improve the sound quality of the music played on these
systems.
Today an increasing number of music lovers are buying
storing and listening to music through their computer, media server, or
personal music player (iPod). Many are also digitally distributing
their music using Sonos, Squeezebox,
or one of a host of digital music distribution systems available on the
market.
This is a great way to explore and appreciate music but
generally it’s done at the expense of sound quality. Until now music
lovers have been forced to rely on the inferior digital to analog converters
(DACs) and sounds cards contained in those devices. As a result, their
musical enjoyment has dramatically suffered.
By uniting a state of the art digital to analog converter
with a tube output we produce the clarity and precision of a 24bit DAC with
the warm rich open sound people love of tubes. The
Music Hall dac25.3 has 4 digital inputs which can accept any coax (s/pdif),
optical, XLR (AES/EBU), or USB digital input from an iPod transport,
computer, media server, Sonos, Squeezebox,
CD/DVD in stereo transport, or
Music Hall’s own cd35.2 compact disc
player, and it will output two channel stereo analog.
The Music Hall dac25.3
features the latest texas instruments (formerly burr-brown) PCM 1796
24bit/192kHz, advanced segment, stereo audio digital to analog converter.
This processor features 123dB dynamic range an 8 x oversampling digital
filter and just 0.0005% thd. The dac25.3 upsamples to either 96kHz or 192kHz
which is user selectable on the front panel. To achieve the best sound
we use an advanced asynchronous reclocking and anti jitter control system
upstream of the PCM 1796 DAC. For this system we are using the Philips
74HC574 in conjunction with the Texas Instruments SRC4192 asynchronous
sample rate converter whose master clock is a high precision active crystal
oscillator. The Music Hall dac25.3
also features a large r-core high current oversize power transformer.
A headphone output is provided for convenient personal listening.
SPECIFICATION / FEATURE LIST:
- USB input accepts 24bit/96kHz signal
- Electro-harmonix 6922 tube single-ended (rca)
output
- Solid-state differential balanced output
- TI PCM 1796 24bit/192kHz DAC
- TI SRC 4192 asynchronous sample rate converter
- High precision active crystal oscillator master
clock
- User selectable 96kHz or 192kHz upsampling
- Asynchronous reclocking and anti jitter control
system
- 8 x oversampling digital filter
- 4 digital inputs: coax (s/pdif), optical, XLR (AES/EBU),
or USB
- 2 gold plated outputs; single ended (RCA),
balanced (XLR)
- Headphone output with adjustable analog volume
control
- Large high current oversize r-core power
transformer
- Thick brushed aluminum fascia and solid chassis
- 110v/220v voltage selectable transformer
- Detachable power cord
- w8.5 x d13.5 x h3.75 in
10 |
|
YOUR PRICE
$594.88
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
PHONO
PREAMPLIFIERS |

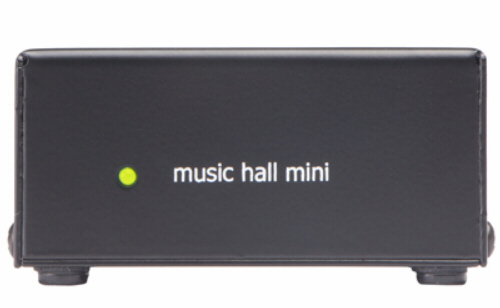

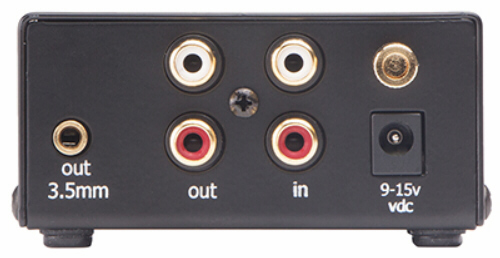

music hall mini
Phono Preamplifier
The Music Hall
Mini is a solid state moving magnet phono preamp for use with moving
magnet and high output moving coil cartridges. The
Music Hall Mini is designed to amplify an
RIAA equalized phono signal to a high level signal. It’s cheap,
cheerful, and built in the USA.
SPECIFICATION / FEATURE LIST:
- RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
- Steel chassis
- I/O connectors: RCA, 3.5mm trs stereo
- Input sensitivity: 35 dB gain @1kHz, 47k Ohms
Input Z
- Input capacitance: 5pf + cable capacitance
- Input impedance: 50k Ohms
- Output impedance: 1 K Ohms
- Max output level: >10dB @ 1kHz at .1% dist.
- S/N ratio: >80 dB unweighted
- THD .02% @ 1KHz
- Power: 9 – 15 VDC
- Indicator: 1 power LED
- w3.25 x h1.5 x d2 in.
1.5 |
|
YOUR PRICE
$ 88.88
FREE SHIPPING when purchased with Phono Cartridge
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806
(Toll Free)
or
954-938-9889 |

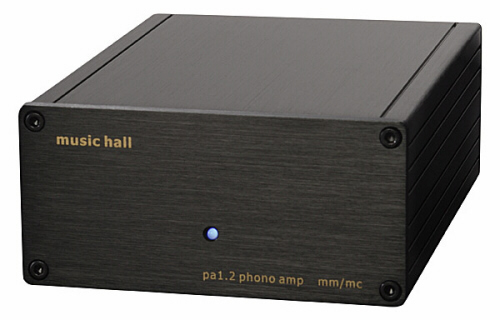

pa1.2
MM
/ MC Phono Preamplifier
The Music Hall
PA1.2 Phono Amp is the perfect solution for attaching a turntable to
a receiver or integrated amplifier.
The Music Hall PA1.2
Phono Amp is a perfect solution for attaching a turntable to modern
audio equipment. It is a low-noise, high quality phono preamp that
accepts both moving-magnet and moving-coil cartridges. The beautifully
finished, extruded aluminum chassis wards off the effects of stray magnetic
fields and provides a safe, quiet environment for the sensitive electronics
it houses, thus providing you with the best sound possible from your
turntable.
SPECIFICATION / FEATURE LIST:
- Gain mm/mc 40dB / 60 dB
- Input sensitivity mm/mc 5mV/1kHz / 0.45mV/1kHz
- Input impedance mm/mc 47Kohms/120pF / 100
ohms/120pF
- Output voltage typically mm/mc
300mV at 1KHz – 3mV (MM Input) / 0.3mV (MC input)
- Total harmonic distortion mm/mc <0.01 / <0.05%
- RIAA curve accuracy 20Hz-20kHz / 0.5dB
- SNR mm/mc -86dB / -68dB (-94dB / -75 dB A
weighted)
- Input voltage 15V/300mA AC
- External power supply
- Rigid extruded aluminum chassis
- w4.2 x d6 x h2.1 in.
A brief review of the PA1.2
"A low noise, high quality phono pre amp
that accepts both moving magnet and moving coil cartridge."
3 |
|
Sorry...
This item has been
by MUSIC HALL.
Thank you for your support over the years!
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
pa15.3
MM
/ MC Phono Preamplifier
The
MUSIC HALL
PA15.3 Phono Pre-Amp is the perfect solution for attaching a turntable to
a receiver or integrated amplifier.
No one creates turntables and phono pre-amps like
MUSIC HALL, and the
PA15.3 is no exception.
The Music Hall PA15.3 Phono Amp is a perfect solution for attaching a turntable to modern
audio equipment. It is a low-noise, high quality phono preamp that
accepts both moving-magnet and moving-coil cartridges. The beautifully
finished, extruded aluminum chassis wards off the effects of stray magnetic
fields and provides a safe, quiet environment for the sensitive electronics
it houses, thus providing you with the best sound possible from your
turntable.
SPECIFICATION / FEATURE LIST:
- Gain mm/mc 40dB / 43dB / 60 dB / 63dB
- Input sensitivity mm/mc 5mV/1kHz / 0.45mV/1kHz
- Input impedance mm/mc 10ohms / 100 ohms / 1Kohms /
47 Kohms
- Input capacitance mm/mc 100pF / 200 pF / 320 pF /
420 pF
- Noise Floor, 92 dBV (A Weighted), 87 dBV
(20-20kHz)
- Maximum Output Voltage, 10Vrms (THD <1%)
- RIAA Equalization Curve Accuracy Maximum 0.5 dB /
20Hz-20kHz
- Outboard Power Supply: 18 Volts / 500mA DC
(Suitable for each country)
- Crosstalk, >98dB at 5mV, 10 kHz, 40 dB Gain.
- Power Consumptiom: 30mA DC Volts
- Rigid extruded aluminum chassis
- 3.93" W x 6.7" D x 2.25 H.
3 |
|
YOUR PRICE
$248.88
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
pa2.2
MM
/ MC Phono Preamplifier
The Music Hall
PA2.2 Phono Amp is the perfect higher end solution for attaching a turntable to
a receiver or integrated amplifier. Versatility, Performance,
Compactness, Affordability: Four-In-One Music Hall pa2.2 MM/MC Phono
Preamplifier Also an Analog-to-Digital Converter, Headphone Amp, and Preamp
Dubbed by Music Hall "the Swiss Army
Knife" of MM/MC phono preamplifiers, pa2.2
is actually a four-in-one component that also serves as an
analog-to-digital converter, headphone amplifier, and line-level
preamplifier. Apart from its versatility, performance, and compact size, the
best part about pa2.2 just might be its incredibly low
price. No mere pushover, this flexible all-in-one component delivers
high-quality sound and provides a laundry list of features. For starters:
The extra-quiet MM/MC phono preamplifier with adjustable MC gain combined
with a 24-bit/96kHz Wolfson ADC and high-resolution two-input preamp (phono
and line level) that allows you to record vinyl LPs or any line-level source
directly to your computer. Then, add in a Tenor TE7022 24-bit/96kHz USB
receiver, USB digital output, and a phase/invert switch for high-end sonics.
Want to archive mono records? Easy. pa2.2 is compatible
with mono and stereo LPs, and its Alps "blue velvet" volume control and
external-switch-mode power supply further elevate what you'll hear no matter
what source or function you select. Top it off with a high-grade headphone
amplifier for intimate listening sessions and solid top-to-bottom
construction, and pa2.2 is your new best friend for
computer audio functions as well as traditional music listening.
3 |
|
YOUR PRICE
$448.88
|
YOUR PRICE
$398.88
With Cartridge Purchase
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
TURNTABLE SPEED CONTROL |

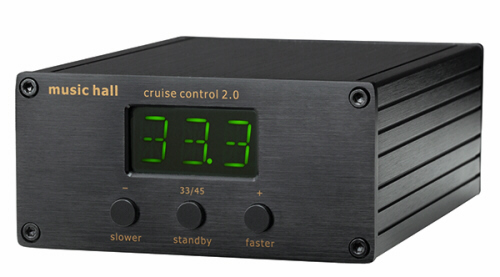

cruise control 2.0
Belt Drive
Manual Audiophile
Turntable Speed Control
The music hall cruise control permits the
electronic speed control of music hall and project turntables between 33.3
and 45 rpm at the simple touch of a button.
Removing the platter and moving the belt from one pulley
to the next is no longer required. The quartz-locked speed control
provides unmatched speed stability to within ±0.0001% deviation.
Used with the appropriate pulley and cartridge, it also
permits the replay of 78 rpm records. The replay speed can be
increased and decreased in twenty steps of 0.1 rpm. The quartz lock provides
perfect speed control for all Music Hall
turntables, many project models, and any turntable with 120v AC synchronous
motor. Please consult your dealer for a full list.
Not compatible with any MUSIC HALL .3 Model Turntables,
MUSIC HALL Ikura Turntables, MUSIC HALL 9.1 or
11.1 Turntables.

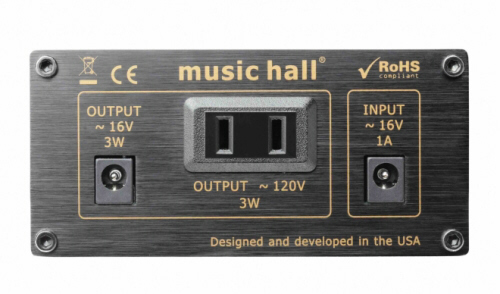

SPECIFICATION / FEATURE LIST:
- Nominal speeds 33 and 45 rpm (optional 78 rpm
w/pulley)
- Quartz oscillator speed stability 0.0001%
- Pitch control 20 step/0.1 rpm
- Turntable connection 16V/AC (3W power consumption
maximum)
- 120V/AC (3W power consumption maximum)
- Outboard power supply 16V/1.000 mA AC
2 |
|
YOUR PRICE
$398.88
With Cartridge
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
HEADPHONE AMPLIFIER |
ha11.1
Headphone Amplifier
The music hall ha11.1 is a high quality low noise
stand-alone headphone amplifier intended for use with the majority of
headphones available. It is for those who desire the best in sound and
performance at an affordable price.
Designed in collaboration with Mike Creek of
Creek Audio Ltd. fame, it
represents the culmination of a strong and cooperative bond dedicated to
outstanding audio products formed some 30+ years ago by music hall and
Creek. The beautifully finished extruded aluminum chassis wards off the ill
effects of stray magnetic fields, provides a safe quiet environment for the
sensitive overnight electronics it houses, and thus provides you with the
best possible sound for your headphones.
SPECIFICATION / FEATURE LIST:
- Output power: >10 mW into 30 ohm / 300 ohm loads
- Headphone impedance: 30 ohm to 300 ohm
- Total harmonic distortion: < 0.01% at 1 kHz
- Signal to Noise: > 70 dB
- Power consumption: < 4 VA
- Power supply requirement: 24V DC 150mA, external
power supply
- Rigid extruded aluminum chassis
- w4.0 x d5.1d x h2.6 in
2
|
|
$274.88
With Cartridge
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
ha25.3
Hybrid Headphone Amplifier
The music hall ha11.1 is a high quality low noise
stand-alone headphone amplifier intended for use with the majority of
headphones available. It is for those who desire the best in sound and
performance at an affordable price.
Designed in collaboration with Mike Creek of
Creek Audio Ltd. fame, it
represents the culmination of a strong and cooperative bond dedicated to
outstanding audio products formed some 30+ years ago by music hall and
Creek. The beautifully finished extruded aluminum chassis wards off the ill
effects of stray magnetic fields, provides a safe quiet environment for the
sensitive overnight electronics it houses, and thus provides you with the
best possible sound for your headphones.
SPECIFICATION / FEATURE LIST:
- Output power: >10 mW into 30 ohm / 300 ohm loads
- Headphone impedance: 30 ohm to 300 ohm
- Total harmonic distortion: < 0.01% at 1 kHz
- Signal to Noise: > 70 dB
- Power consumption: < 4 VA
- Power supply requirement: 24V DC 150mA, external
power supply
- Rigid extruded aluminum chassis
- w4.0 x d5.1d x h2.6 in
2
|
|
$494.88
With Cartridge
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |

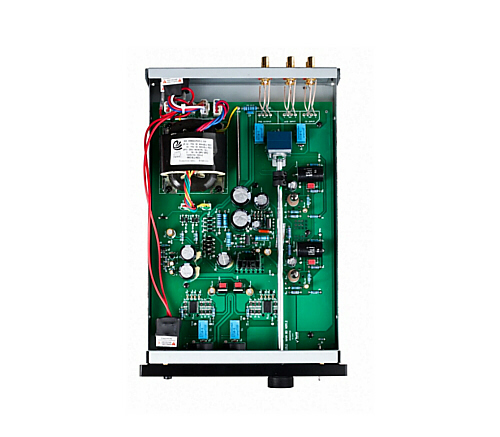

ph25.2
Headphone Amplifier
Marrying a gorgeous sounding tube pre-amp
with solid-state amplification has been a technique for achieving unequaled
sound quality in hi-end component audio since the advent of the transistor.
While kicking around ideas for our new headphone amp we
thought, why not try this same technique in a single component? We
built one up and were blown away by the increased detail, clarity, and
presence the design offered. The tube hybrid headphone amp was born.
Hand assembled using the highest quality parts available the Music Hall
ph25.2 will have you singing along with your
favorite artists.
SPECIFICATION / FEATURE LIST:
- Neutrik headphone output sockets
- Highly reliable 6N16B tube pre-amp section
employing SRPP circuit
- CD and AUX input
- Pre-amp output
- Audiophile grade CMC RCA sockets ensure no signal
loss
- Special low-noise R-core power transformer
- Two buffered headphone outputs incorporating
superior TPA6120 opamps
- Precise Alps Type 27 potentiometer with 0.5dB
accuracy
- Solid and substantial ½in. brushed alloy fascia
- Voltage switchable
- w8.5 x d13.5d x h3.75 in
2
|
|
$398.88
With Cartridge
Check with
a sales associate for occasional programs and specials.
Call
(844) 669-7806 (Toll Free)
or
954-938-9889
for additional information! |
