ASTATIC
PHONO CARTRIDGES |
|
REPLACEMENT
PHONO STYLI |
Model/
Description |
Photographs
Enlarged for Detail |
|
13AT
13 AT 13A T 13at 13-at 13a- t
Stereo Ceramic Piezo
"Sound Flo"
Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Stereo Configuration.
-
Used in
Airline 60-60, Duotone 812,
Emerson 941, E.V. 13, Fidelitone AC-256, G.E. RS-16515, Motorola
59B642691, Pfanstiehl 910-SS73, Philco 35-2817, Phonola 14120, Sylvania
916-0013, V-M 18615-A, Webcor 21P573 and 21P586
&
Westinghouse 671V001H02 Systems.
- Other acceptable replacement styli
are: None.
- Alternate Part Number:
Emerson 962326.
Comments:
New old stock (NOS) tested. |
Not shown to scale. |
Your Cost
$
69.56 EACH |
13T
13T 13 T 13t 13 t
Stereo Ceramic Piezo
"Sound Flo"
Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Stereo Configuration.
-
Used in
Airline 60-60, Duotone 812,
Emerson 941, E.V. 13, Fidelitone AC-256, G.E. RS-16515, Motorola
59B642691, Pfanstiehl 910-SS73, Philco 35-2817, Phonola 14120, Sylvania
916-0013, V-M 18615-A, Webcor 21P573 and 21P586
&
Westinghouse 671V001H02 Systems.
- Other acceptable replacement styli
are: None.
- Alternate Part Number:
Emerson 962326.
Comments:
New old stock (NOS) tested. |
Not shown to scale. |
Your Cost
$
76.90 EACH |
17
17
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Stereo Configuration.
-
Used in
Replaces Admiral
409A51-1, 409A55-1, 409A59-1,3,; Airline (Wards) 60-71; Columbia
SC1D-SC8D; E-V 26, 132, 149; Garrard 59327, 59352; GE RS2195, RS3825,
EA97X155, EA97X250; Lesa s, u; Motorola 59-60336a03; Pilot 42-055;
Philco 35-2853-1, 35-2859-1, 325-2853-1, 325-8068; Sylvania 916-011,
916-029; V-M 22867-A thru -D
&
24404-A thru
-H Systems.
- Acceptable replacement styli
are: N41SD
& N42SD.
- Alternate Substitute Part Number:
P132.
Comments:
Replacement for Astatic low
output (0.35 volt) half inch mount style cartridge with flip-over needle and
bracket. Premium, extended fidelity, light tracking cartridge.
New old stock (NOS) tested. |
|
Your Cost
$
79.50 EACH |
40T
40T 40 T 40t 40 t
Ceramic Mono Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
Configuration.
Replacement Comments:
The
OBSOLETE
EV28 and
Astatic 40T, 41T
cartridges replaced many cartridges made by Shure in addition to replacing
their own makes. These were used in numerous record players of the early to
mid '50s, especially those with V-M Model 950 series record changers.
Replaces V-M part 2606, 3063, 3182, 3239, 3442, 3455, 3691, 4254, 4278,
4918, 5403, 5570, 6714; RCA 162A001, 75044, 75044A, 78478; Shure P72, P76,
P77 with -A, -AF, -AFV, -AV , -V, P79, PC40, PC41, PC41-AF, PC72V, W22,
W22A, W22B, WC22AB, WC24.
OEM Cartridge Part Numbers:
Electro-Voice E-V 28, E-V 28D; Astatic 40T, 41T, also
single needle versions 40-1, 40-2, 40-3, 41-1, 41-2, 41-3
Comments:
The substitute EXCEL EXTN-4A
cartridge bolts in, but the turnover knob not used. However, it can
remain in place if desired. |
|
OBSOLETE
Replacement for bracket mount style
turn-over cartridge with about a 1 volt output.
CLICK ON LINK BELOW FOR MODERN SUBSTITUTE (STEREO COMPATIBLE).
Please see the EXCEL EXTN-4A
Replacement Phono Cartridge.
|
41T
41T 41 T 41t 41 t
Ceramic Mono Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
Configuration.
Replacement Comments:
The
OBSOLETE
EV28 and
Astatic 40T, 41T
cartridges replaced many cartridges made by Shure in addition to replacing
their own makes. These were used in numerous record players of the early to
mid '50s, especially those with V-M Model 950 series record changers.
Replaces V-M part 2606, 3063, 3182, 3239, 3442, 3455, 3691, 4254, 4278,
4918, 5403, 5570, 6714; RCA 162A001, 75044, 75044A, 78478; Shure P72, P76,
P77 with -A, -AF, -AFV, -AV , -V, P79, PC40, PC41, PC41-AF, PC72V, W22,
W22A, W22B, WC22AB, WC24.
OEM Cartridge Part Numbers:
Electro-Voice E-V 28, E-V 28D; Astatic 40T, 41T, also
single needle versions 40-1, 40-2, 40-3, 41-1, 41-2, 41-3
Comments:
The substitute EXCEL EXTN-4A
cartridge bolts in, but the turnover knob not used. However, it can
remain in place if desired. |
|
OBSOLETE
Replacement for bracket mount style
turn-over cartridge with about a 1 volt output.
CLICK ON LINK BELOW FOR MODERN SUBSTITUTE (STEREO COMPATIBLE).
Please see the EXCEL EXTN-4A
Replacement Phono Cartridge. |
51
51
Ceramic Mono Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
or 3.0 mil. 78 RPM stylus Configurations.
Replacement Comments:
Replaces
GE part EA1493, Motorola part 61150, Pfanstiehl part P14, P127, P200, P209,
Silvertone (Sears) part 89242, 89243.
OEM Cartridge Part Numbers:
Astatic part 51, 408, AC, CAC, GC
series cartridges; Electro-Voice part EV 33, EV 5207, EV 5222, EV 5242.
Comments:
Modern ceramic
monaural cartridges used in jukebox, 45 and 78 rpm players with single tip
needle and a 1/2 in mount. For use in RCA 45 players.
NOTE:
Some individuals prefer to
REPLACE the cartridge with new improved "low silouette" design with
conventional round pins!
Contact us and order variety with needle needed for your application. |
|
Your Cost
$
48.10 EACH
|
64-TS
64-TS 64TS 64 TS
64-ts 64ts 64 ts
Ceramic Stereo Cartridge
- 1.0 mil. Spherical 33 / 45 RPM
Mono Configuration.
-
Used in
Replaces V-M part 9004,
9121, 9168, 9234, 9655; Admiral 409C31-1; Airline(Wards) 60-92, 60-115;
Coronado PU121; E-V 88, 5203; Jensen 5, 24; Motorola 59C60210B01;
Penncrest TO-55; Pfanstiehl P-331; Phonola 18576, 21777; Realistic
42-2784; Ronette 1, 12, P-VM-9234, TO-222-9655; OV-VM9120,
TO-284-OV-9121, TO-284-P-9234; Sylvania 916-0035; Symphonic TO-55;
Truetone PU110, PU116, SC4, TO-45, 4DC6401, 4DC6403; Vaco (Varco) TO-45,
TO-55
&
Webster A103 Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
Comments:
Replacement for high output (3.0 volts)
turn-over style cartridge using V-M turn-over knob. Knob shaft diameter 9/64
inches, shaft length 27/64 inches.
New old stock (NOS) tested. |
|
Your Cost
$129.62 EACH
(Very Rare) |

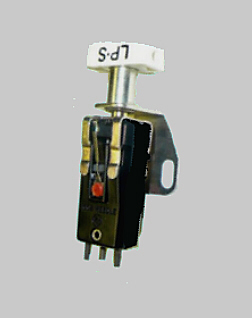

76-TSB
76-TSB 76TSB 76 TSB
76-tsb 76tsb 76 tsb
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
-
Used in
Replaces Airline (Wards)
60-64; BSR TC8S; Dunkirk T-O Stereo; Emerson 963726; E-V and Jensen
S26B, 96, 142; GE RS3480; Olympic PX27786, PXM13168; Pfanstiehl P-310;
Philco 325-8049, 325-8059; Phonola 17902; Primo C50; Ronette 106, 106-2,
106-3, 106-4; Rystl-MR Piezo SMT-29R; Silvertone(Sears) 33-323-0;
Sylvania 11-14353-1, 916-0020; Symphonic 76tsb; Truetone P208;
Vaco(Varco) ST-4 (with Ronette shaft); Webcor 21P-596, 21P598, 21P599,
21P716, 21P717; Westinghouse 671V010H01
&
H03 Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
Comments:
Replacement for medium high output
(2.0 volts) turn-over style stereo crystal cartridge with mounting bracket.
New old stock (NOS) tested.
Also see EV96 for Ronette
version and additional replacement information. Replaces Lafayette
24-81703 & Maestro 130-33. |
|
Your Cost
$126.12 EACH
(Rare) |
81T
81T 81 T 81t 81 t
"Sound Flo"
Monaural Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Used in
Chuo Denki CZ 800 Cartridge.
- Other acceptable replacement styli
are: 89T.
- Alternate Part Number:
793-D7
Comments:
New old stock (NOS) tested. |
|
Your Cost
$
36.92EACH |

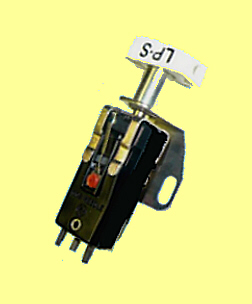

86TSB
86TSB 86 TSB 86tsb 86 tsb
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
-
Used in
Replaces Astatic 86TSB, 86D;
BSR TC8S; Acos 73, 73-1A, GPS-73; E-V 95, EV 121, E-V 5215; Garrard
GC-2; Jensen 146; Magnavox 560277-2, 560278-1; Per-Ebner PE-90,
PE-180US; Pfanstiehl P-300, Ronette OV, T, 92, 105-2, 105-3, 105-4;
Sonotone 20T1-S; Sylvania 11-14158-1; Telefunken Studio OV, Studio T;
Vaco(Varco) ST-1A, ST-2, ST-20 cartridges; Voice of Music part VM
30113-A
&
30113-B Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
Comments:
Replacement for low output (0.8
volts) turn-over style stereo crystal cartridge with mounting bracket.
New old stock (NOS) tested. |
|
Your Cost
$
62.15EACH |
89T
89 T 89t 89t
"Sound Flo"
Monaural Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 mil. Spherical 78 RPM Configuration.
- Replaces
AUDIOTRONICS CARTRIDGE 9-J,
CALIFONE 1410, 1411, 1412, 1413, 1414, 1415, 1416, 1417, 1418, 1419,
1420K, 1421, 1422, 1423, 1424, 1425, 1426, 1427, 1428, 1429, 1430K,
1431, 1432, 1433, 1434, 1435, 1436, 1437, 1438, 1439, 1440, 1441, 1442,
1443, 1444, 1445, 1446, 1447, 1448, 1449, 1450C, 1451, 1452, 1453, 1454,
1455, 1456, 1457, 1458, 1459, 1460, 1461, 1462, 1463, 1464, 1465, 1466,
1467, 1468, 1469, 1470, 1810, 1815, 1825, 1835, 1836,, 1837, 1838, 1839,
1840, 1841, 1842, 1843, 1844, 1845, 1846, 1847, 1848, 1849, 1850, 1851,
1852, 1853, 1854, 1855, 1856, 1857, 1858, 1859, 1860, 1861, 1862, 1863,
1864, 1865, 1866, 1867, 1868, 1869, 1870, 1871, 1872, 1873, 1874, 1875.
CORONADO 9135, 9136, 9135, 9136,
ELECTRO-VOICE 81, 89, 81D, 89D.
FISHER PRICE TALK-TO-ME 816, 820, 825, 800, 0824.
PHILCO 325-8037.
RADIO SHACK, REALISTIC CARTRIDGES 42-2704, 422704,
42-2705, 422705.
RADIO SHACK, REALISTIC NEEDLES R-16, R16.
RCA 105836
SEARS/SILVERTONE 88-11389, 8811389, 88-11390, 8811390, 88-15593,
8815593, 88-15594, 8815594, 60-58, 6058, 60-59, 6059, 88-15593, 8815593,
88-15594, 8815594.
SONOTONE NEEDLES 11T, T2, 11T2, N11T, N11T2.
SYLVANIA CARTRIDGES 11-10328-8
SYLVIANIA NEEDLES 11-10328-8, 11103288, 916-0010, 9160010.
TRANSCRIBER NEEDLES P16
VOICE of MUSIC MODELS 1281, 1282, 1296, 14877, 14900, 16618, 16619,
16620, 16621, 16622, 16623, 16624, 16625, 16626, 16627, 16628, 16629,
16630, 16631, 16632, 16633, 18464, 18697, 18698, 566A, 568.
VOICE of MUSIC NEEDLES 14900, 16618, 16630, 16633.
WEBCOR MODELS 575
WEBCOR 21P567
WESTINGHOUSE CARTRIDGES 04H04, 110V005H43, 671V004H04.
- Alternate Substitute Part Number:
ABOVE.
Comments:
New old stock (NOS) tested.
|
|
Your Cost
$ 72.80 EACH
(Very Rare) |
118TS
118TS 118 TS 118ts 118 ts
Ceramic Mono Cartridge
- 1.0 mil. Spherical 33 / 45 RPM Stylus
Configuration.
- Replaces V-M part
7447-A, 9234, 15258-A; E-V 5231; Jensen 3; Penncrest 5101B; Pfanstiehl
P-321; Sylvania 916-0006, Vaco(Varco) TO-35, TO-45L, TO-45LG, TO-55;
Zenith 142-86B. Also replaces Ronette 22, 23, DC-400-OV, DC-400-OV1,
DC-400-P, DC-400P1, TO-284-OV-9120, TO-284-OV-9121, TO-400, TO-400-O,
TO-400-OV &
TO-400-P
Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
- Alternate Substitute Part Number:
P331.
Comments:
Replacement for low output (0.7 volts)
turnover style monaural crystal cartridge with shaft for V-M knob. Knob
shaft diameter 9/64 inches, shaft length 27/64 inches.
New old stock (NOS) tested.
NOTE: Some individuals
prefer to REPLACE the cartridge assembly with a more modern cartridge.
We have some kits available. Ask us for more details. |
|
Your Cost
$ 89.85 EACH
(Very, Very Rare) |
120
120
Ceramic Mono Cartridge
- 1.0 mil. Spherical 33 / 45 RPM Stylus
Configuration.
- Replaces V-M part
7447-B,15258-B, -C; Airline(Wards) 60-63, 60H47; GE RS4186; Jensen 11,
88; Lafayette 24-50724; Philco 35-2806, 325-8021, 325-8027-1; Piezo
MT-14V; Realistic 42-2706; Sears 720056; Truetone 3DX5367; Vaco(Varco)
TO-55; Webcor 21P562; Webster B100, B102, B201, B202; Westinghouse
671V011H01; Zenith part 142-125, 142-146B. Also replaces Ronette 24,
DC-400, DC-400-222, DC-400-222-S, DC-400-T1, DC-500-1, P-VM-9234, T-222,
TO-200, TO-284-9655, TO-284-P-9234, TO-400-200
&
TO-400-222
Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
- Alternate Substitute Part Number:
P331.
Comments:
Replacement for high output (3.0 volts)
turnover style monaural crystal cartridge with shaft for V-M knob. Knob
shaft diameter 9/64 inches, shaft length 27/64 inches.
New old stock (NOS) tested. |
|
Your Cost
$
59. 22EACH |
124
124
Ceramic Mono Cartridge
- 1.0 mil. Spherical 33 / 45 RPM Stylus
Configuration.
- Astatic 126; Admiral
409C40-1,-2,-4, 409C46-1 -1,-4; Airline(Wards) 60-102; Collaro Studio O
(old); Emerson 963094; E-V 87 (non V-M changers), Jensen 7, C1B; Philco
35-2775, 35-2776, 35-2779; Ronette DC122, DC122-A1, DC400, DC400-OV,
DC400-P, DC422, DC422-075, DC500-A1, DC500-2,-3,-4, P104, P1-222,
TC-200, TO-200, TO-222-A1, T-222, TO-400-222 (not for VM changer);
Silvertone(Sears) 33-303-0, 5793, 5795; Truetone
&
Westinghouse
690v021h07
Systems.
- Acceptable replacement styli
are: N7-7D,
N7-7S, N8-1D,
N8-1S,
N8-2S,
N8-3S,
N8-7D &
N8-7S.
Comments:
Replacement for high output
turnover style monaural crystal cartridge. Knob shaft diameter 5/64 inches,
shaft length 7/16 inches, then a larger diameter of 5/32 inches and length
1/8 inch.
New old stock (NOS) tested.
NOT
for use in V-M changers. This cartridge will not
replace all cartridges that the EV87 will replace. |
|
Your Cost
$
59.10 EACH |

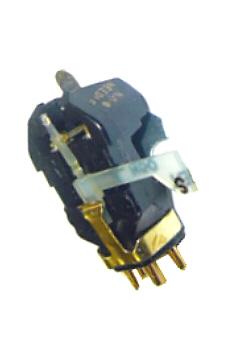

133
133 133D 133 D 133d 133 d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces V-M part
19922-A,-B, 27271-C,-D, 46217-A; Lafayette 24-81778, 24-81786; Maestro
130-19, 130-20, 130-91, 130-95; Pfanstiehl P-152; Piezo Y510; Zenith
142-144 &
142-145
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output
(0.5 volt) half inch mount style cartridge with flip-over needle.
New old stock (NOS) tested. |
|
Your Cost
$
71.30 EACH |
139d
139D 139 D 139d 139 d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces Admiral part
409C62-1 thru -4; Arvin 95929-30; Astatic 139, 718, 718D; Curtis Mathes
11A047-009; Euphonics U10, U11; E-V 277; Jensen RSD50B; Philco
35-2889-1, 325-8016, 325-8016-1, 325-8082; Silvertone(Sears) 8888-S,
8888-SD, 88882, 88883, 33-467-0, 33-469-0; Sonotone 22t-sd, 23t-sd;
Sylvania 11-14703-1; V-M 27271-C and -D; Webcor 21P743-4
&
Westinghouse
671V037B01
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output (0.35
volt) half inch mount style
cartridge with flip-over needle and bracket.
New old stock (NOS) tested. |
|
Your Cost
$
67.70 EACH |
140D
140D 140 D 140d 140 d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
-
Airline 60-112, E.V. 5548, G.E. RS-6518, G.E.
EA80X214, G.E. EA80X316, Motorola
59B642691,
- &
Zenith 142-148 Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
New old stock (NOS) tested. |
|
Your Cost
$
68.30 EACH |
142D
142D 142 D 142d 142 d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
-
Airline 60-112, E.V. 5548, G.E. RS-6518, G.E.
EA80X214, G.E. EA80X316, Motorola
59B642691,
- &
Zenith 142-148 Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
- Alternate Part Number:
P142
Comments:
New old stock (NOS) tested. |
|
Your Cost
$
57.55 EACH |
153d
153D 153 D 153d 153 d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces Admiral part
409C62-1 thru -4; Arvin 95929-30; Astatic 139, 718, 718D; Curtis Mathes
11A047-009; Euphonics U10, U11; E-V 277; Jensen RSD50B; Philco
35-2889-1, 325-8016, 325-8016-1, 325-8082; Silvertone(Sears) 8888-S,
8888-SD, 88882, 88883, 33-467-0, 33-469-0; Sonotone 22t-sd, 23t-sd;
Sylvania 11-14703-1; V-M 27271-C and -D; Webcor 21P743-4
&
Westinghouse
671V037B01
Systems.
- Acceptable replacement styli
are: N56SD
&
N-58SD.
Comments:
Replacement for Astatic low output (0.35
volt) half inch mount style cartridge with flip-over needle and bracket.
New old stock (NOS) tested. |
|
Your Cost
$
67.70 EACH |
155d
155D 155 D 155d 155d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces V-M part
19922-A,-B, 27271-C,-D, 46217-A; Lafayette 24-81778, 24-81786; Maestro
130-19, 130-20, 130-91, 130-95; Pfanstiehl P-152; Piezo Y510; Zenith
142-144 &
142-145
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output
(0.5 volt) half inch mount style cartridge with flip-over needle.
New old stock (NOS) tested. |
|
Your Cost
$
71.30 EACH |
157d
157D 157 D 157d 157d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces Admiral
409C63-1 thru -4; Airline (Wards) 60-126; Arvin 95929-13; Curtis Mathes
11A047-014; E-V 186, 282; Jensen R3CSD49B; Masterwork 158d; Motorola
59-52271A02; Philco 35-2860-1, 35-2865-2, 325-0129; Phonola 17938;
Silvertone (Sears) 33-410-0, 8897D, 88892, 88893, 88972, 88973; Sylvania
11-14716-1, 11-18250-1, 11-18250-2; V-M 27271-A, 27271-B, 27272-C,
27272-D; Westinghouse 670L514M04 &
Zenith 142-160
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output (0.1
volt) half inch mount style
cartridge with flip-over needle and bracket.
New old stock (NOS) tested. |
|
Your Cost
$
66.44 EACH |
157R
157R 157 R 157r 157r
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces Admiral
409C63-1 thru -4; Airline (Wards) 60-126; Arvin 95929-13; Curtis Mathes
11A047-014; E-V 186, 282; Jensen R3CSD49B; Masterwork 158d; Motorola
59-52271A02; Philco 35-2860-1, 35-2865-2, 325-0129; Phonola 17938;
Silvertone (Sears) 33-410-0, 8897D, 88892, 88893, 88972, 88973; Sylvania
11-14716-1, 11-18250-1, 11-18250-2; V-M 27271-A, 27271-B, 27272-C,
27272-D; Westinghouse 670L514M04 &
Zenith 142-160
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output (0.1
volt) half inch mount style
cartridge (retractable) with flip-over needle. Supplied
with floating half inch bracket.
New old stock (NOS) tested. |
|
Your Cost
$
69.05 EACH |
353D
353D 353 D 353d 353d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
1.75 mVolts.
- Tracking Force:
3.0 Grams.
- RCA 115276, RCA
115277, RCA 115346, RCA 115703, RCA 204-1, EV 5190
&
Pfanstiehl P-166
Cartridges.
- Acceptable replacement styli
are: N83-SD,
N74-SD
(Long Arm),
N83 &
N84.
- Installation:
Rear Mount and Clip.
- Alternate Part Number:
P-166
|
|
Your Cost
$ 125.26EACH |
445
445
Ceramic Mono Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
1.0 Volts.
- Tracking Force:
8.0 - 10.0 Grams.
- Replaces Sonotone 2T,
3T, 5T, 7T cartridges used in many phonos; V-M part 7316, 7477, 14456,
16729-A; Airline 60-41; Columbia 360K; E-V 38; Magnavox 560161-1, -2,
560224-1, -2, 560225-2; Pfanstiehl P-136; Philco 325-8018; 325-8034;
35-2767; RCA 78748, 79807, 100653; Silvertone (Sears) 33-234-0; 720044
&
720087
Cartridges.
- Acceptable replacement styli
are:
N52-SD &
N53-SD.
Comments:
Replacement for 1 volt output fixed
half inch mount ceramic monaural cartridges.
New old stock (NOS) tested. |
|
Your Cost
$
97.22EACH |

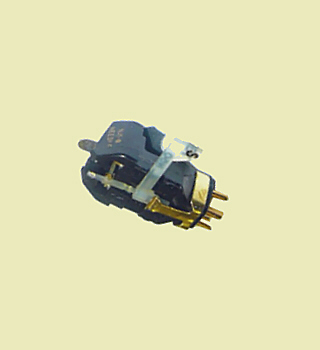

485
485
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Replaces V-M part
19922-A,-B, 27271-C,-D, 46217-A; Lafayette 24-81778, 24-81786; Maestro
130-19, 130-20, 130-91, 130-95; Pfanstiehl P-152; Piezo Y510; Zenith
142-144 &
142-145
Systems.
- Acceptable replacement styli
are: N-50,
N-51, N-60,
N-62,
N-63,
N-68,
N-70 &
N-72.
Comments:
Replacement for Astatic low output
(0.5 volt) half inch mount style cartridge with flip-over needle.
New old stock (NOS) tested. |
|
Your Cost
$
71.30 EACH |

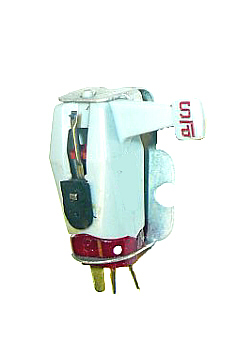

710
710
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
Configuration.
- Output Voltage:
0.5 Volts.
- Tracking Force:
2.0 - 6.0 Grams.
-
Replaces
V-M part 22763, 22891, 22942, 23960, 24016, 25588; Admiral 409C39-1, -2,
409C44-1, -2, 409C47-1 thru -4; Airline(Wards) 60-77, 60-94, 60-86,
60-88, 60-89; Jensen 53, 54, 55, 56, 80; Lafayette 24-51458, 24-51466,
24-81802; Motorola 59C60335A01 and A02, 59C60336A01 and A02, 59C61100A01
and A05, 59C61270A01 and A02; Pfanstiehl P-133; Phonola 15723; Realistic
42-2789; Sylvania 916-0037, 916-0038, 916-0039; Truetone 4DC5142 and
others; Zenith 142-110B, 142-111B, 142-121, 142-122.
Euphonics E1, E2, U1,
U2, M1 &
UM1 series
Cartridges.
- Acceptable replacement styli
are: 383.
Euphonics
214.
215
&
216.
- Alternate Part Number:
P-226
also
Maestro 130-1
thru
130-12.
Comments:
Replacement for Euphonics E1,
E2, U1, U2 series ceramic cartridges.
New old stock (NOS) tested. |
|
Your Cost
$ 103.50EACH |
713
713
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
0.5 Volts.
- Tracking Force:
2.0 - 6.0 Grams.
-
Replaces
V-M part 22763, 22891, 22942, 23960, 24016, 25588; Admiral 409C39-1, -2,
409C44-1, -2, 409C47-1 thru -4; Airline(Wards) 60-77, 60-94, 60-86,
60-88, 60-89; Jensen 53, 54, 55, 56, 80; Lafayette 24-51458, 24-51466,
24-81802; Motorola 59C60335A01 and A02, 59C60336A01 and A02, 59C61100A01
and A05, 59C61270A01 and A02; Pfanstiehl P-133; Phonola 15723; Realistic
42-2789; Sylvania 916-0037, 916-0038, 916-0039; Truetone 4DC5142 and
others; Zenith 142-110B, 142-111B, 142-121, 142-122.
Euphonics E1, E2, U1,
U2, M1 &
UM1 series
Cartridges.
- Acceptable replacement styli
are: 383.
Euphonics
214.
215
&
216.
- Alternate Part Number:
P-226
also
Maestro 130-1
thru
130-12.
Comments:
Replacement for Euphonics E1,
E2, U1, U2 series ceramic cartridges.
New old stock (NOS) tested. |
|
Your Cost
$
58.75 EACH |

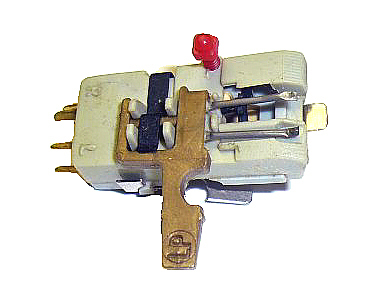

718
718
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
0.4 Volts.
- Tracking Force:
1.5 - 4.0 Grams.
-
Replaces
V-M part 29288-A thur -K; Airline (Wards) 60-110, 60-111; Bradford U22,
U11.5; E-V 149; Catalina U10.5; Curtis Mathes 11A047-002; Jensen 224;
Packard-Bell PB63052; Penncrest U11.5; Pfanstiehl P-133; Westinghouse
671V024H03, 671V024H04
&
671V024A04
Cartridges.
- Acceptable replacement styli
are: 371
& 372.
Comments:
Replacement for Euphonics E10
& E11 ceramic cartridges.
New old stock (NOS) tested. |
|
Your Cost
$
58.75 EACH |
1175D
1175D 1175 D 1175d 1175d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
0.10 Volts.
- Tracking Force:
1.5 Grams.
- EV5102, EV5103,
EV5105, EV5556
&
EV5364
Cartridges.
- Acceptable replacement styli
are:
N79-SD.
- Alternate Part Number:
P401D
|
|
Your Cost
$
36.54 EACH |
1314D
1314D 1314 D 1314d 1314d
Ceramic Stereo Cartridge
- 0.7 mil. Spherical 33 / 45 RPM Stylus
& 3.0 Spherical 78 RPM Configuration.
- Output Voltage:
0.10 Volts.
- Tracking Force:
1.5 Grams.
- Tetrad TC8H6, Tetrad
T8H0
- &
Tetrad TC8H6
Cartridges.
- This cartridge has a
BLUE
socket.
- Acceptable replacement styli
are: N782,
N784,
N786,
N796,
N900,
N903,
N904,
N905 &
N906.
- Installation:
Glue or 2-Sided Tape.
- Alternate Part Number:
P-409d
|
|
Your Cost
$
36.92 EACH |
ASTATIC |
