DIGITRAC
PHONO  CARTRIDGES  from  DENMARK

"Convertible"   Mount  Audiophile  Cartridges

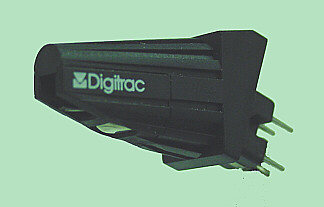

Technical Specifications

• Stylus Type: 0.2 x 0.7 mil. Nude Super Elliptical Stylus Tip
• Frequency Response: 20 Hz. - 30 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.
• Channel Separation: Minimum 25dB at 1 kHz.
• Channel Balance: Minimum 2dB at 1 kHz.
• Tracking Force Range: 1.0 to 1.75 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 275 to picofarads total capacitance.
• Inductance: 580 mH @10Hz Horiz/Vert..
• DC Resistance: 1,000 ohms.
• Dynamic Compliance: 25 Um/mN.
• Net Weight: 5.1 grams.
• Mounting: "Convertible" Mount.

This product was originally manufactured in Denmark by Scan Micro A/S.

Your Price

$ 289.77 Each

EACH

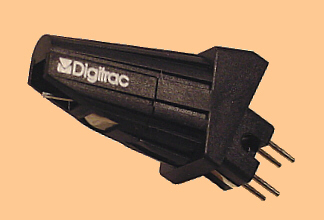

Technical Specifications

• Stylus Type: 0.2 x 0.7 mil. Polished Nude Elliptical Stylus Tip
• Frequency Response: 20 Hz. - 25 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.
• Channel Separation: Minimum 32dB at 1 kHz.
• Channel Balance: Minimum 2dB at 1 kHz.
• Tracking Force Range: 1.0 to 1.75 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 400 to picofarads total capacitance.
• Inductance: 450 mH @10Hz Horiz/Vert..
• DC Resistance: 750 ohms.
• Dynamic Compliance: 25 Um/mN.
• Net Weight: 5.1 grams.
• Mounting: "Convertible" Mount.

This product was originally manufactured in Denmark by Scan Micro A/S.

Your Price

$ 231.07 Each

EACH

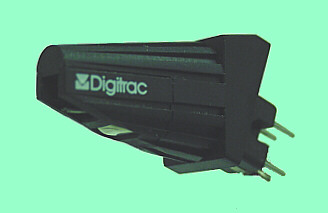

Technical Specifications

• Stylus Type: 0.2 x 0.7 mil. Nude Elliptical Stylus Tip
• Frequency Response: 20 Hz. - 20 kHz.
• Output Voltage: 4.0 mV per channel at 1 kHz.; 5 cm./sec. peak recorded velocity.
• Channel Separation: Minimum 22dB at 1 kHz.
• Channel Balance: Minimum 2dB at 1 kHz.
• Tracking Force Range: 1.0 to 1.75 grams.
• Optimum Load: 47, 000 ohms resistance in parallel with 400 to picofarads total capacitance.
• Inductance: 450 mH @10Hz Horiz/Vert..
• DC Resistance: 750 ohms.
• Dynamic Compliance: 30 Um/mN.
• Net Weight: 6.0 grams.
• Mounting: "P" Mount.

This product was originally manufactured in Denmark by Scan Micro A/S.

Your Price

$ 205.15 Each

EACH

RELATED  PRODUCTS

SFG-2
Stylus Tracking Force Gauge

The Shure SFG-2 Stylus Tracking Force Gauge is the industry standard. This simple-to-use measuring device was developed to give listeners a way to insure against the problems caused by improper tracking force settings, which include mis-tracking, excessive record and tip wear, and poor sound reproduction.

This gauge is a highly accurate beam balance instrument designed to measure the actual downward force exerted by a stylus on a record over the range of 0.5 to 3.0 grams. Each gauge is individually calibrated, and displays readings in 0.05 gram increments in order to provide a precise measurement of stylus tracking force.

• The Safest Way to Remove Waxy Deposits,  Dust or other Deposit Build-Up from Your Phono Stylus.

• D5SC060 Stylus Cleaning Formula Dissolves Foreign Material Known to Hinder Proper Stylus Tracking.

• Brush Applicator Quickly Whisks Away and Dissolves Deposits Without Harming the Delicate Diamond Stylus.

• A Regular Regimen Between Album Side Plays Extends Both Stylus and Record Life.

• This Fluid is Particularly Important for Cartridges and Tone Arms which use Low Tracking Force.

• Manufacturer: D5 Squared Products.

SYSTEM CONTENTS:

• D5SC060 Stylus Cleaning Formula Includes Applicator in Cap.

• The D5SC060 Stylus Cleaning Formula in a 2.02 Ounce (60 ml.) Smoked Glass Bottle.

WARNING!  WARNING!  WARNING!

• Avoid Prolonged Breathing of Vapors or Immediate Contact with Skin.
  Use Only with Adequate Ventilation.

• DO NOT TAKE INTERNALLY.

• In case of eye contact, flush with water immediately.  If swallowed, induce vomiting only when conscious.  Call a physician.

DANGER!

This FLAMMABLE formula should NOT be used near heat, sparks or open flame.

Your Price
$ 17.92

EACH

BENEFITS:

• Four "color coded" headshell wires.

• Gold plated terminals for best conduction.

• Silk wrapped LC-OFC copper Litz conductors.

• Manufacturer: Audioquest.

Your Price
$ 24.93

Set of Four

BENEFITS:

• Greater clarity and contrast from damping vinyl records on glass or metal platters.

• Replaces factory record mat.

• Manufacturer: Audioquest.

Your Price
$ 94.22

EACH

BENEFITS:

• Contains more than 1,000,000 conductive carbon fibers for effective record cleaning.

• Designed for dry use.

• Works well on LCD screens and keyboards too!

• Manufacturer: Audioquest.

Your Price
$ 19.91

EACH

BENEFITS:

• Simple to use.

• Double barrel for wider dispersion.

• No battery or electrical connections necessary.

• Keeps your records cleaner and quieter.

• Use wherever static build-up is a problem.

• Manufacturer: Empire Audio Groome.

Your Price
$ 89.92

EACH
